Features
- These are Solenoid Operated Directional Valves of high pressure, high flow and low pressure drop, the features of which can be materialized by employing a powerful wet type solenoid and the rational flow channel design.
3. Connected to the common terminal, the 50HZ and 60HZ can overcome the disturbance of varied frequencies.
4. Both plug-in solenoid easy to changeable coil.
5. The light beaming direction of movement is distinctive.
特性
- 濕式電磁設計、做動平穩無沖擊、噪音值低。
- ISO標準、安裝尺寸具有絕對互換性。
- 50Hz、60Hz共用端子結構,解決不同周波之?dāng)_。
- 插入型電磁設計,分解組立非常容易。
- 燈光指示做動方向,明確清楚。
Specifications性能參數
型號Model |
最大流量Max.flow (L/min) |
最高使用壓力 Max. pressure ( Mpa) |
最高切換頻率 Max. change over frequency (次/小時)cpm |
||
A、B、P | T | 直流DC | 交流AC | ||

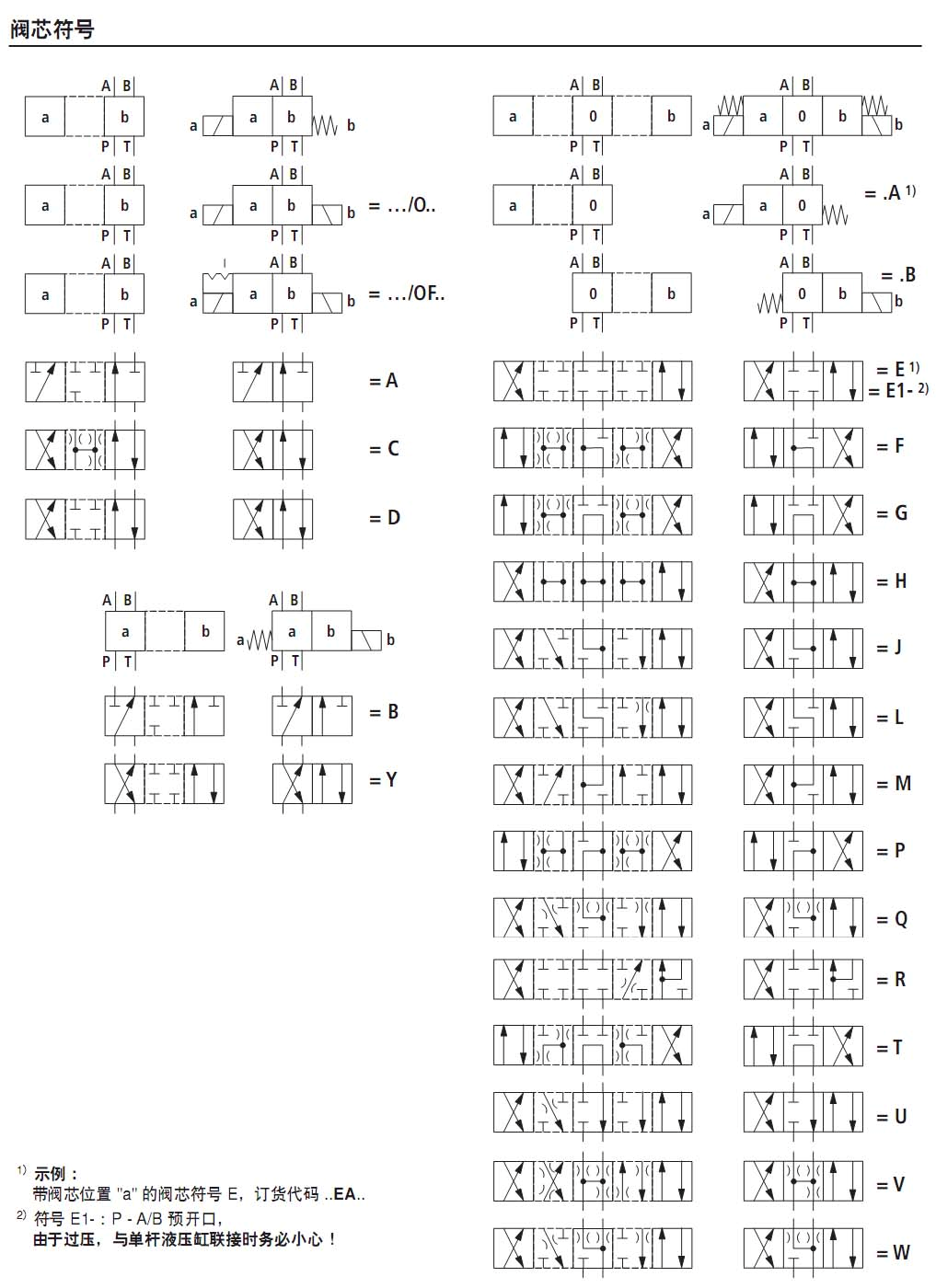

4WE10E※ 4WE10G※ 4WE10H※ 4WE10J※ 4WE10L※ 4WE10D※ 4WE10C※ 4WE10D/OF※ ……… |
120 | 31.5 |
21 |
15000 | 7200 |
